Premium Image Quality from a Compact Imager
The DryPix Plus is a dry laser imager which combines the high quality and performance of Fujifilm's centralized imagers, with an extremely compact design and convenient 110 volt power, making it ideal for small centralized departments that do not need the ultra-high speed.

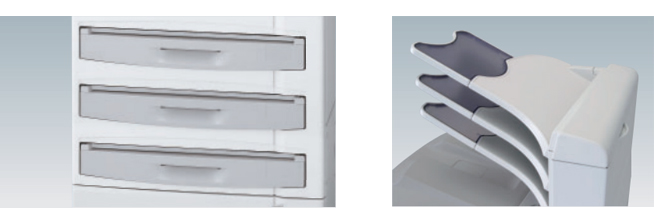

The DryPix Plus is a dry laser imager which combines the high quality and performance of Fujifilm's centralized imagers, with an extremely compact design and convenient 110 volt power, making it ideal for small centralized departments that do not need the ultra-high speed and throughput of DryPix 5000. The DryPix Plus has excellent throughput between 110 and 160 films per hour. Like the DryPix 5000, this unit also features 50-micron high resolution printing and has been approved for use with Full Field Digital Mammography (FFDM) devices. It accommodates all common film sizes, has three film drawers and an optional top-mounted 4-bin film sorter. An internal DICOM print server with Windows XP operating system allows the DryPix Plus to operate with high performance in environments where space is at a premium. |
 |
Features ● Adaptable to broader needs from small clinics to general hospitals ● Superb capability realized by high maximum density (enables mammography use) ● Available in a wide range of film sizes ● Fits anywhere, allowing maximum freedom of placement within the medical facilities The DRYPIX Plus combines proven reliability and convenience with remarkable operating efficiency, all in a compact body. Boasting unrivalled image quality, networkability, backup security and accessible price, DRYPIX Plus is the ideal imager for small- to medium-sized hospitals. |
 |
|
Throughput ● Up to 160 films/hour (110 14"x17" films/hour) Time to first film ● 85 seconds (14"x17" film) DICOM Connectivity ● Verification SOP Class ● Basic Gray Scale Print Management Meta SOP Class (SCP) ● Print Job SOP Class (SCP) ● Annotation SOP Class ● Queue Management SOP Class Film Sizes Type DI-HL ● 14"x17" (35 x 43 cm) ● 14"x14" (35 x 35 cm) ● 10"x14" (26 x 36 cm) ● 10"x12" ● 8"x10" Type DI-HLc ● 14"x17" (35 x 43 cm) ● 8"x10" |
Printing Resolution ● 100 microns / 50 microns (selectable) Dimensions and Weight DryPix Plus ● Height: 43" ● Width: 24" ● Depth: 23" ● Weight: 353 lbs. DryPix Plus w/ Sorter ● Height: 43" ● Width: 24" ● Depth: 55" ● Weight: 375 lbs. Power Requirements ● 100-120 VAC 12 A |
Call us to schedule a consultation. (800) 239-XRAY (9729) IMPROVE YOUR IMAGE
