Value with Powerful CT Capabilities
Supria Plus (16/32) and Supria True64 (64/128) provide high levels of CT image quality across a wide range of applications utilizing premium class imaging chains typically found in higher priced systems. Access the latest dose awareness, reduction and management features. And take advantage of a compact footprint, increased patient access and lower cost of ownership of Supria models.
Outstanding Comfort and Experience For Your Patients
Supria models are designed with the patient in mind. Their large aperture, long table with high weight capacity comfortably accommodates patients of all sizes up to 500lbs.
Remarkably Compact Design Meeting your needs and healthcare environment challenges, the engineering team at Hitachi designed Supria to be open, yet compact — fitting in nearly all existing CT rooms. By minimizing siting costs, incorporating improved workflow processes and maximizing patient comfort, your investment in Supria translates into a faster return on investment. Supria has just 3 compact modules: ● (1) Image Processor Cabinet ● (2) Gantry ● (3) Table High-end Imaging and Performance from a Compact CT Patient-centric design coupled with the engineering excellence of Supria puts you in control without compromising imaging performance. This makes the overall experience better for your patients in addition to more efficient and dependable for you. ● Compact footprint allows easy placement in most existing CT rooms ● Wide 75cm Aperture makes for a more comfortable environment for the patient ● High weight-capacity table accommodates larger patients up to 500 lbs ● Long Scannable range of 180cm for long coverage exams of tall patients with a single injection ● Intuitive user interface ● HAvailable powerful and renowned TeraRecon 3D visualization server solutions |
|

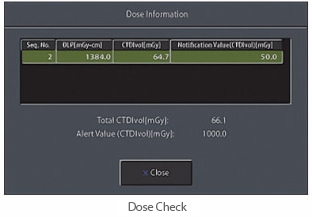

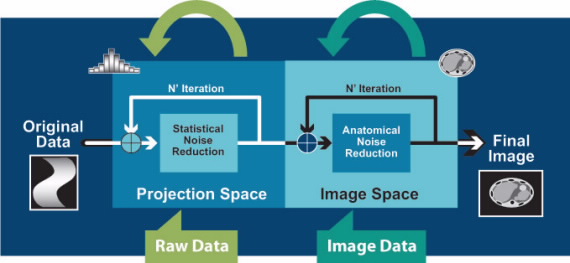

Smart Dose (XR-29) Compliant All new Hitachi CT systems are designed to meet ALARA practices as well as complying with the new XR-29 Smart Dose Standard. Supria comes standard with the latest dose reduction, monitoring and reporting capabilities required by XR-29: ● Automatic Exposure Control – Intelli EC (3-D) ● Pediatric and Adult Reference Protocols ● DICOM Dose Structured Report ● CT Dose Check (XR-25) Intelli IP Quick – Iterative Reconstruction Hitachi’s latest workflow enhancing, proprietary engine that makes use of adaptive iterative reconstruction in both projection and image space. Its use reduces pixel noise at a given level of mAs as compared to filtered back projection without Intelli IP Quick.  Simple Dose Report Provides a dose report embedded in the image series, available whenever and wherever the images are viewed. Locked Protocols (Access Controls, XR-26) Protects protocols from unintended changes (unless an authorized password is used) to ensure more consistent imaging results and avoid unintended dose changes. Reduced kV Imaging Allows selection of the lowest appropriate kV for the individual patients’ size — supports scanning at 80,100,120 or 140kVp. |
|
Look to Supria for all your non-Cardiac applications and experience enhanced clinical value, shorter exam times and clear, concise images backed by Hitachi’s unmatched support. Neurological Capabilities Supria CT provides clear Neurological soft tissue definition and expands the clinical role of CT Angiography of the Neck and Brain. Routine utilization of CTA for the evaluation of carotid and vertebral arteries are now the norm. The Supria CT with thin slice reconstruction and advanced rendering methods has improved the accuracy of stenosis detection in both neck and intracranial vasculature. Cerebral aneurysms and other vascular diseases can be identified with Supria. Thoracic/Body Capabilities Supria is rapid exam acquisition times provides improvements in patient compliance and image quality. The scanner’s utilization of ≤ 1.0 second 360° rotation time for routine body examination enables the acquisition of multiple phases of contrast enhancement which is of paramount importance in imaging soft tissue organs. The higher Z-axis resolution permits excellent multi-planar image reconstruction which plays a critical role in diagnosis of a variety of congenital, neoplastic, inflammatory and traumatic lesions of the Chest, Abdomen and Pelvis. Musculoskeletal Capabilities Supria’s long anatomic coverage speed and superior image resolution enables fast diagnostic work up and institution of therapy in the setting of musculoskeletal trauma. Scanning with thin slice reconstruction combined with 3-D reformations provides detailed assessment of the musculoskeletal system. And, Scenaria employs advanced processing to minimize objectionable artifacts cause by metal implants. |
|
|
SUPRIA PLUS SpecificationsScan Parameters● Slices: 16, with 32-slice FineRecon option ● Rotation times (seconds): 0.75, 1.0, 1.5, 2.0 ● Data collection speed: 1,200 views per second ● Minimum Slice thickness (mm): 0.625 ● FOV (mm): 20-500 ● Max scan range (in/mm): 71/1800 ● Max scan rotations: 100 ● Volume scan pitch: 0.578 to 1.578 Scan Acquisition Types ● Scanogram with real-time display – AP & Lateral ● Normal scan - axial mode ● Volume scan - helical mode ● With or without Orbital Synchronization ● Dynamic Scan mode for Time Density Analysis Gantry ● Gantry aperture (cm): 75 ● Gantry tilt: ±30 degrees ● Gantry Display: Digital Panel ● Scan localizer X-Ray Detector ● Type: Solid state ceramic ● Coverage: 20mm with 32 rows and 16-channel DAS ● Detector elements: 32 x 880 = 28,160 X-Ray Tube ● Anode heat capacity: 5.0MHU ● Anode max. cooling rate: 748kHU/min ● Tube cooling: Oil/Air ● Focal Spot (mm): 0.7 x 0.8; 1.2 x 1.4 X-Ray Generator ● Output: 48kW ● kVp selection: 80, 100, 120, 140kV ● mA selection: 10-400mA (5mA steps) Patient Table ● Table-top width: 19in (475mm) ● Table weight capacity: 500 lbs. (227kgs) ● Horizontal accuracy: ±0.25mm ● Vertical travel range: 18in (450mm) to 39in (1000mm) ● Scannable range 180cm Operator's Console ● Display: single 24-inch LCD widescreen monitor ● Display resolution: 1920 x 1200 Image Reconstruction ● Matrix: 512 x 512 ● Immediate Preview Recon ● Reconstruction time: up to 10 images/second (depending on recon parameter) ● Iterative Reconstruction: Intelli IP Quick ● CT number range: -32,768 to +32,767 Dose Reporting ● Simple Dose Report ● DICOM Dose Structured Report (SR) ● CT Dose Check (NEMA XR-25) ● NEMA Smart Dose Compliant (XR-29) Siting ● Minimum suite size: 250 Sq. Ft. ● Typical suite size: 340 Sq. Ft. |
SUPRIA TRUE64 SpecificationsScan Parameters● Slices: 64, with 128-slice FineRecon option ● Rotation times (seconds): 0.75, 1.0, 1.5, 2.0 ● Data collection speed: 1,200 views per second ● Minimum Slice thickness (mm): 0.625 ● FOV (mm): 20-500 ● Max scan range (in/mm): 71/1800 ● Max scan rotations: 100 ● Volume scan pitch: 0.578 to 1.578 Scan Acquisition Types ● Scanogram with real-time display – AP & Lateral ● Normal scan - axial mode ● Volume scan - helical mode ● With or without Orbital Synchronization ● Dynamic Scan mode for Time Density Analysis Gantry ● Gantry aperture (cm): 75 ● Gantry tilt: ±30 degrees ● Gantry Display: Digital Panel ● Scan localizer X-Ray Detector ● Type: Solid state ceramic ● Coverage: 40mm with 64 rows and 64-electronics channels (True64 – DAS) ● Detector elements: 64 x 880 = 56,320 X-Ray Tube ● Anode heat capacity: 5.0MHU ● Anode max. cooling rate: 748kHU/min ● Tube cooling: Oil/Air ● Focal Spot (mm): 0.7 x 0.8; 1.2 x 1.4 X-Ray Generator ● Output: 48kW ● kVp selection: 80, 100, 120, 140kV ● mA selection: 10-400mA (5mA steps) Patient Table ● Table-top width: 19in (475mm) ● Table weight capacity: 500 lbs. (227kgs) ● Horizontal accuracy: ±0.25mm ● Vertical travel range: 18in (450mm) to 39in (1000mm) ● Scannable range 180cm Operator's Console ● Display: single 24-inch LCD widescreen monitor ● Display resolution: 1920 x 1200 Image Reconstruction ● Matrix: 512 x 512 ● Immediate Preview Recon ● Reconstruction time: up to 22 images/second (depending on recon parameter) ● Iterative Reconstruction: Intelli IP Quick ● CT number range: -32,768 to +32,767 Dose Reporting ● Simple Dose Report ● DICOM Dose Structured Report (SR) ● CT Dose Check (NEMA XR-25) ● MITA Smart Dose Compliant (XR-29) Siting ● Minimum suite size: 250 Sq. Ft. ● Typical suite size: 340 Sq. Ft. |
